Rotaty

This command is by group. SKTOOL configuration editor software allows engineers to rotate one or more graphical objects at any angle. Graphic objects that can be rotated to contain straight lines, circles, rectangles, graphics system library, controls, a combination of graphics, and polygons.

Ø  Flip Horizontal

“Flip horizontal” allows engineers to rotate the graphic object (may be a plurality of graphic objects) at 180°by the axis of vertical center in the horizontal plane after selecting. First select one or more graphical objects, then click “Flip Horizontal” in the Edit menu "Mirror" or click the Flip Horizontal button in the Tool bar.



When a single graphic object is selected, as shown in Figure 4-12:

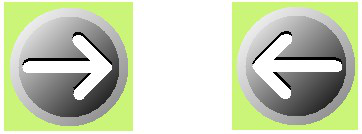

Figure 4-12    Contrast before and after Flip Horizontal of single graph object

Ø  Flip Vertical

“Flip Vertical” allow engineers to rotate the graphic object (may be a plurality of graphic objects) at 180°by the axis of horizontal center in the vertical plane after selecting. First select one or more graphical objects, then click “Flip Vertical” in the Edit menu "Mirror" or click the Flip Vertical button in the Tool bar.



When a single graphic object is selected, as shown in Figure 4-14:

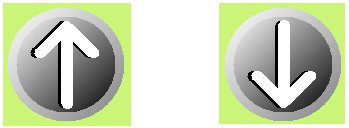

Figure 4-14    Contrast before and after Flip Vertical of single graph object

Ø  Rotating

Currently, only the following 12 controls are supported to support this function:

    Time Display、Date Display、Week Display、Static Picture、GIF Display、Picture、Numentric Display、Numerical Input、ASCII Display、ASCII Entry、MultiState Lamp、MultiState Switch

After rotation allows engineering design personnel selection controls, to object center as the dot, memory 360 °.Select an object, click the "rotate" command in the edit menu, or click the rotate button in the tools button

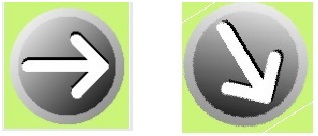

Rotation process
