You must compile the program to view the usage of software components.

The software component occupancy table allows you to view which software components are used in the program and in what form. It also helps identify duplicate assignment errors.

This software component is used as a bit.

Select the filter 'Input Signal X' to view all input signals (X) used.

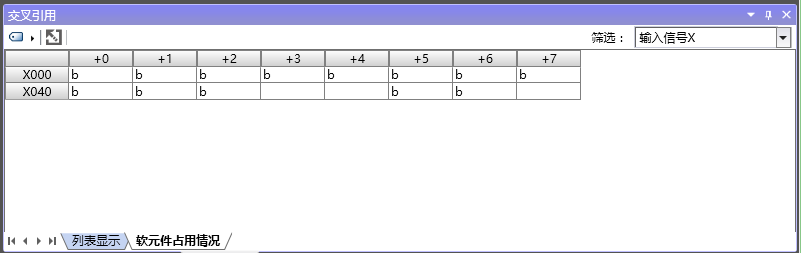

图1 Input signal occupancy

The table has a total of 8 columns because the address of X is in base 8.

In addition to the input signal X and output signal Y, if it is a decimal address, the table will be formatted in 10 columns.

This example program performs repeated memory assignment on D0.

图2 Error Program

Check the byte usage table to identify incorrect assignments. Because double characters require 4 bytes, there should be 2 adjacent Ds in line D0.

图3 Error check
