1. ANDD caculate
ในหน้านี้5 หัวข้อ
1.1. Instruction Description#
The instruction performs AND operations on inputs (IN1) and (IN2) and loads the result into the output (OUT) register.
1.2. The valid operands of the instruction#
1.2.1. single word instruction(ANDW)#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN1 | 16 bit integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | Input 1 |
| IN2 | 16 bit integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | Input 2 |
| OUT | 16 bit integer | D/CV/TV/AO/V/Z, bit composite word (Y/M/C/T/S), local variable (LW) | output |
1.2.2. Double word instruction(ANDD)#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN1 | 32-bit integer | D/CV/K/H/FD, bit composite word (X/Y/M/C/T/S), local variable (LD) | Input 1 |
| IN2 | 32-bit integer | D/CV/K/H/FD, bit composite word (X/Y/M/C/T/S), local variable (LD) | Input 2 |
| OUT | 32-bit integer | D/CV, bit composite word (Y/M/C/T/S), local variable (LD) | output |
1.3. Example#
Command table:
NETWORK 000
LD X000
ANDD D0 D2 D4

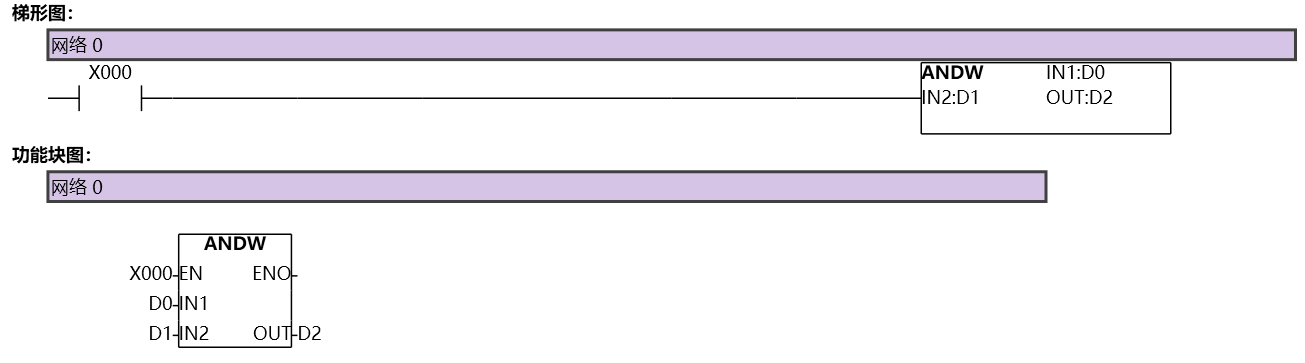

图1 ANDW
