The instruction will first convert binary data (S) into BCD code, and then shift and transmit the BCD code to achieve data allocation and combination. The BCD code of the source data (S) is shifted from the (N1) th bit to the (N2) th bit starting from the (N3) th bit of the data (D), while the BCD codes of the other bits of the destination data (D) remain unchanged. Then, the BCD code in data (D) is automatically converted into a binary number, which is the content of data (D). An error occurred when the BCD code value exceeded 9999.

Input/Output	Data Type	operand	Description
SV	16 bit integer	D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW)	input
SS	16 bit unsigned integer	D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW)	input position
SC	16 bit unsigned integer	D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW)	length
DV	16 bit integer	D/CV/TV/AO/V/Z, bit composite word (Y/M/C/T/S), local variable (LW)	output
DS	16 bit unsigned integer	D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW)	output position

command table:

NETWORK 000

LDP M1

MOV K4321 D1

MOV K8888 D2

POP

LD M1

SMOV D1 K4 K2 D2 K3 //When M1 is' 1 ', the execution result D2=8438

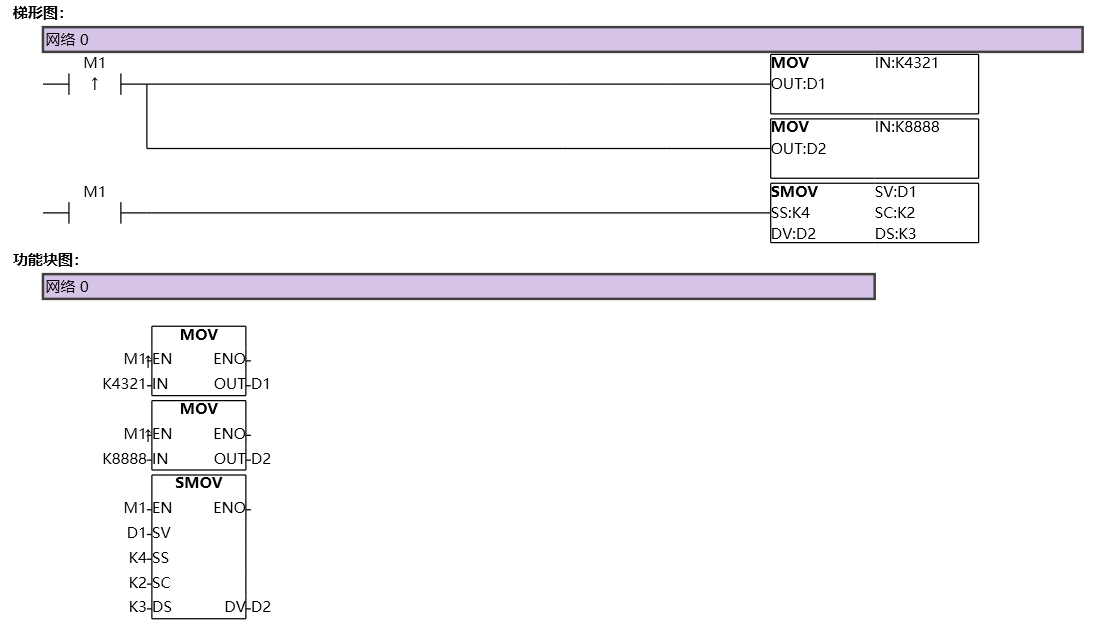

图1 SMOV
