Update project via U disk

SK Series HMI supports importing and updating project via U disk.

How to update the project file via U disk

1. Compile the project

Run SKTOOL; open the project you want to update; click  to generate the compiled file.

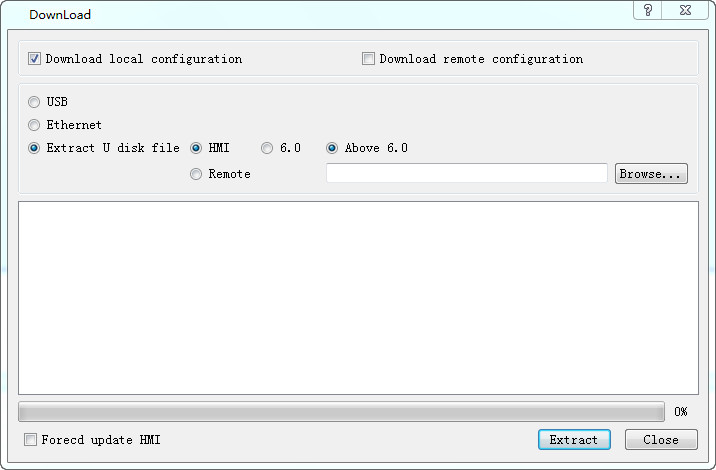

Select Extract U disk file,Select the corresponding version of the usb file,Select save directory.As shown below

2. Click "Save Project As" in "Download", then select the save directory

The file u-disk-prj.bin will be stored in the selected directory.

3. Copy the compiled file to the USB disk

Open the directory, copy u-disk-prj.bin to the U disk.

4. Insert the U disk to HMI

5. Copy the file and re-update the project

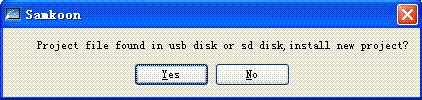

After inserting U disk into HMI, click YES in the pop-up window to execute the update operation.

6. Restart HMI to complete updating

Restart the power supply or restart the HMI by clicking the "Restart" button on the screen.

Note

 • Do not disconnect the USB flash drive during the update process;

• Maintain HMI ON during the update process.
