Wiring

Samkoon SK series touch screen requires DC 24V power supply. Figure 1-18 shows the connection of the touch screen with PLC and PC:

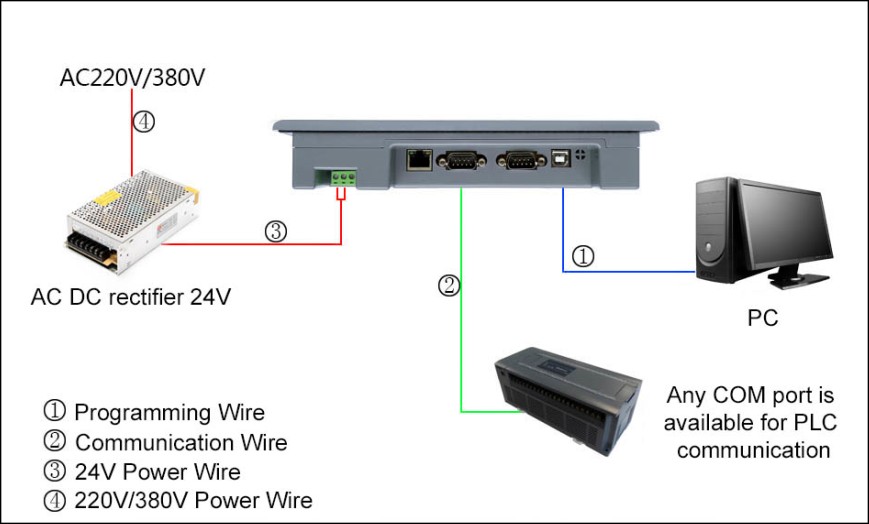

Figure 1-18       Connection diagram of SK series touch screen

USB cables for connection with PC are supplied along with the machine.
