1. right offset operation SHR/SHRD
1. right offset operation SHR/SHRD
1.1. Instruction Description
The instruction moves the input word (S) value to the right (N) bits and loads the result into the output word (D). The shift instruction adds 0 to each shifted bit. If the number of shifts (N) is greater than or equal to 16 (SHRD instruction is 32), the value can be shifted up to 16 times (SHRD instruction is 32). If the number of shifts is greater than 0, the value of the last shift will be copied to the shift instruction overflow flag (M8166). If the result of the shift operation is 0, set the zero flag (M8167) of the shift instruction to 0.
| Related registers | Description |
|---|---|
| M8166 | The last bit to be removed. |
| M8167 | The result of the shift operation is 0. |
1.2. The valid operands of the instruction
1.2.1. Single word Instruction(SHR)
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN1 | 16 bit unsigned integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | Input |
| IN2 | 16 bit unsigned integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | shift |
| OUT | 16 bit integer | D/CV/TV/AO/V/Z, bit composite word (Y/M/C/T/S), local variable (LW) | output |
1.2.2. Double word instruction(SHRD)
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN1 | 32-bit unsigned integer | D/CV/K/H/FD, bit composite word (X/Y/M/C/T/S), local variable (LD) | input |
| IN2 | 32-bit unsigned integer | D/CV/K/H/FD, bit composite word (X/Y/M/C/T/S), local variable (LD) | shift |
| OUT | 32-bit integer | D/CV, bit composite word (Y/M/C/T/S), local variable (LD) | output |
1.3. Example
Command table
NETWORK 000
LD X000
SHR D0 K1 D1 // Shift D0 to the right by 1 bit and output to D1
NETWORK 001
LD X001
SHRD D2 K16 D4 // Shift (D2, D3) to the right by 16 bits and output it to (D4, D5). In reality, D4=0, D5=D2.

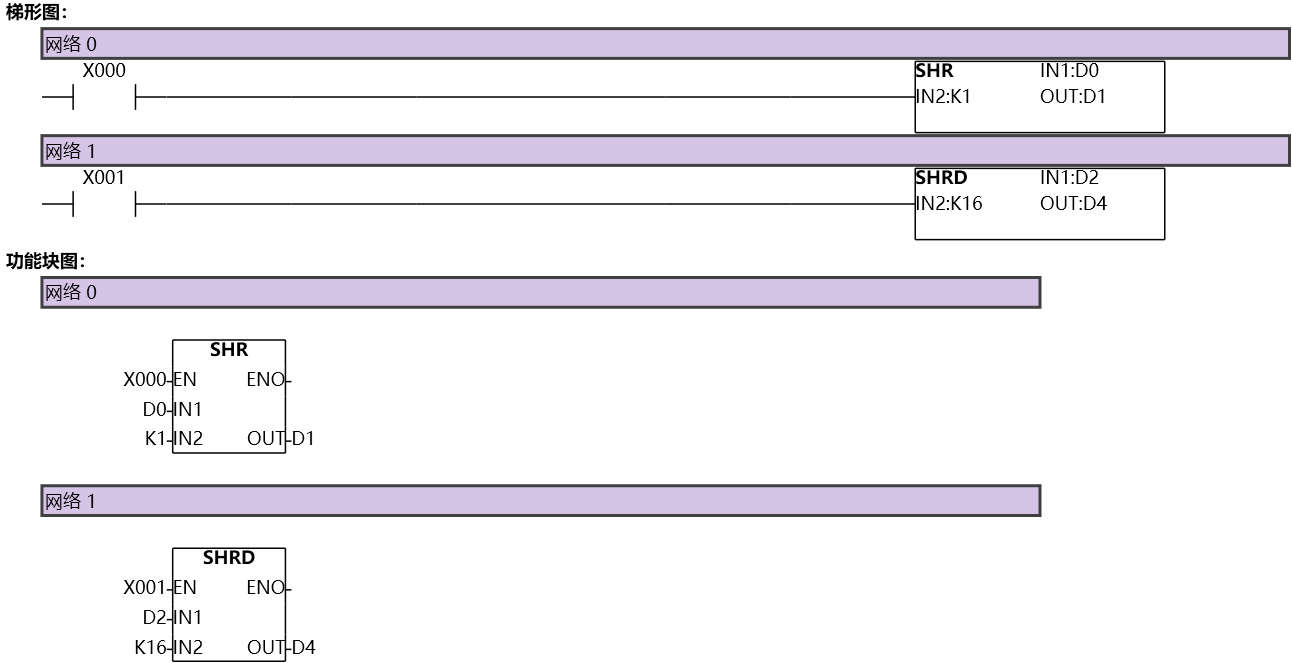

图1 SHR
