Panel Composition

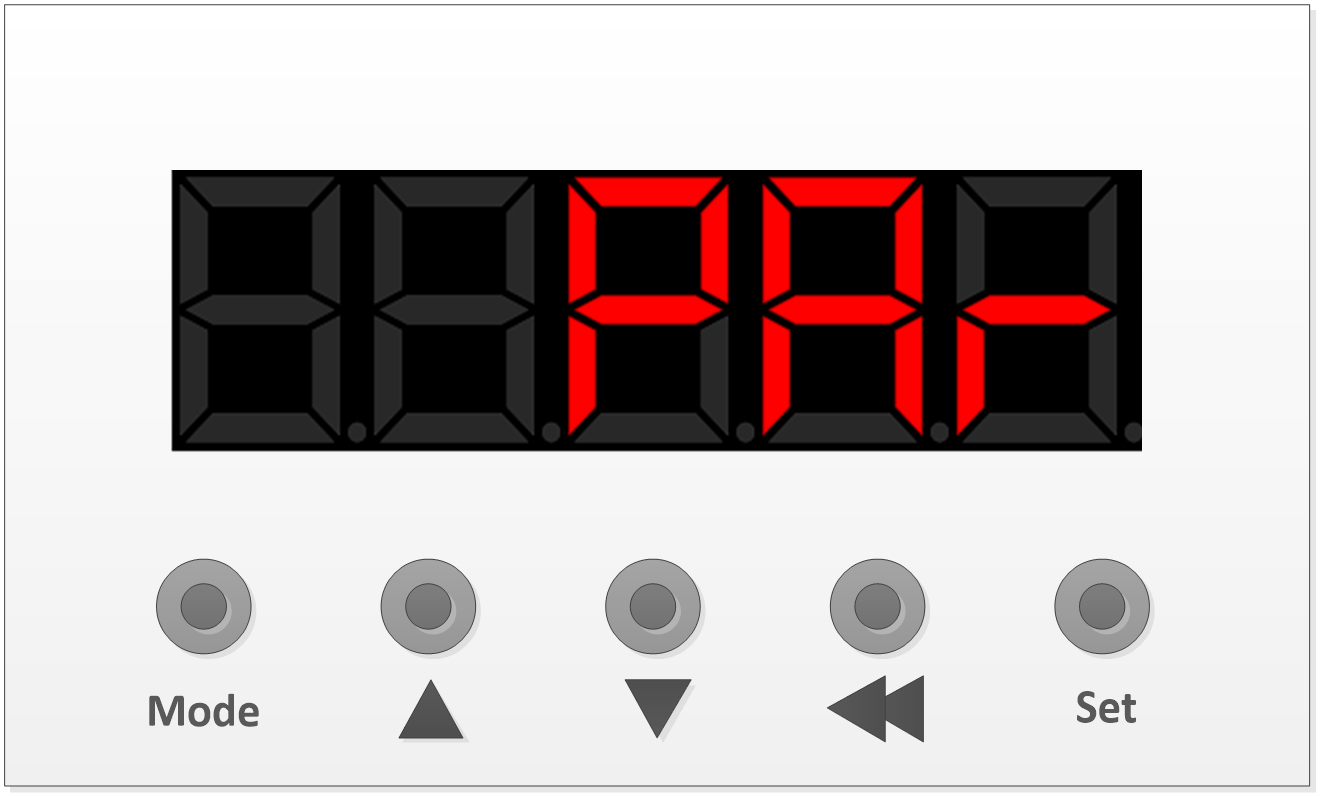

Figure 4-1 LED panel
As shown in the above figure, Samkoon R8 series servo drive panel consists of five digital tubes and five buttons. The functions of the buttons are shown in the table below：
Table 4-1 LED panel button function
Name | Function |
Tubes | 5-digit digital tubes |
| Mode/Return button, switch menu/return to previous level |
| Flip up key, menu page/numerical increase |
| Flip down button, menu page/numerical decrease |
| Shift, shift operation when setting values |
| Set button, confirm settings |
