1. Absolute value ABSF
1.1. Instruction Description#
The instruction (ABSF) takes a 32-bit floating-point input (IN) and outputs a 32-bit floating-point result (OUT). According to the polarity of the input, the original value is output when the input is positive, and the opposite value is output when the input is negative.
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN | 32-bit real number | D/K/FD, local variable (LF) | input |
| OUT | 32-bit real number | D/FD, local variable (LF) | output |
1.3. Example#
Command table:
NETWORK 000
LD M100
ABSF D0 D10

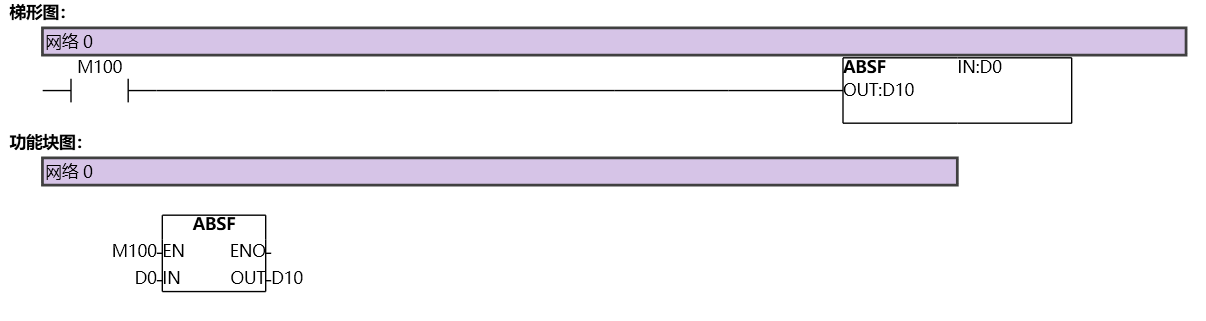

图1 ABSF
