1. Sine SIN
1.1. Instruction Description#
The instruction performs triangulation on the angle value (IN) and places the result in (OUT). Enter angles in units of angles. To convert the input angle from radians to angles, divide radians by 1.745329E-2 (approximately equal to PI/180, PI = 3.1415926）
| Related registers | Description |
|---|---|
| M8170 | The result of the operation is negative. |
| M8171 | The result of the operation is 0. |
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN | 32-bit real number | D/K/FD, local variable (LF) | input |
| OUT | 32-bit real number | D/FD, local variable (LF) | output |
1.3. Example#
Command table:
NETWORK 000
LD X000
SIN K30 D0 // SIN(30°) = D0D1 = 0.5

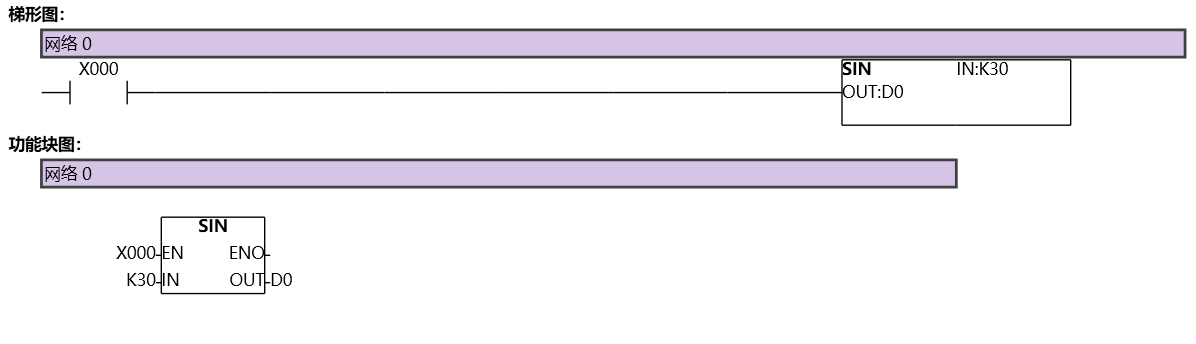

图1 SIN
