1. Calculate the power y of x POW
1.1. Instruction Description#
Perform a power operation with the floating-point value of register (B) as the base and the floating-point value of register (E) as the exponent, and transfer the result to register (P).
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN1 | 32-bit real number | D/K/FD, local variable (LF) | Input 1 |
| IN2 | 32-bit real number | D/K/FD, local variable (LF) | Input 2 |
| OUT | 32-bit real number | D, local variable (LF) | output |
1.3. Example#
Command table:
NETWORK 000
LD M3
POW K10 K3 D0 // result D0(D1) = 1000.0

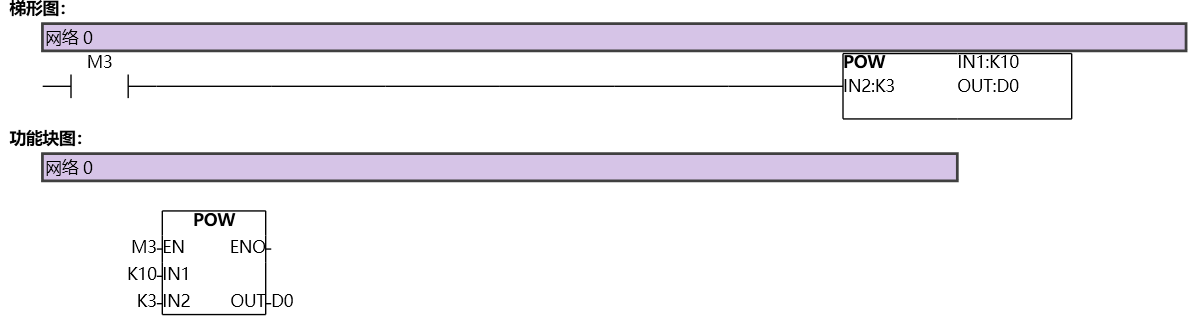

图1 POW
