1. Inverse instruction of calculation result INV
1. Inverse instruction of calculation result INV
1.1. Instruction Description
The inverse of the operation result before INV is used as the enable for output.
1.2. The valid operands of the instruction
| Input/Output | data type | operands | description |
|---|
1.3. Example
Instruction table:
NETWORK 000
LD M000
INV // Invert the result of M000 and output it to Y001
OUT Y001

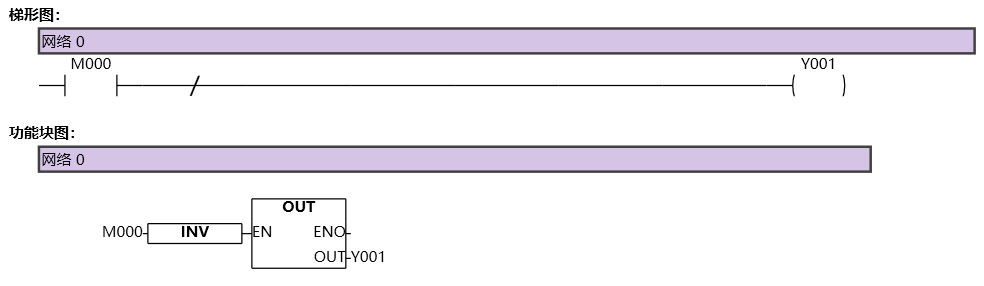

图1 INV
