1. Rising edge pulse PLS
1.1. Instruction Description#
When the result before executing this instruction has a rising edge from OFF to ON, a pulse occurs (only the current scanning cycle is set to ON).
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| OUT | ON/OFF | Y/M/S, word to Bit(D/V/Z), Local variable(LB) | output |
1.3. Example#
Instruction table:
NETWORK 000
LD X000
PLS Y000 //Y000 undergoes a pulse change during the rising edge, with a period equal to the current scanning period

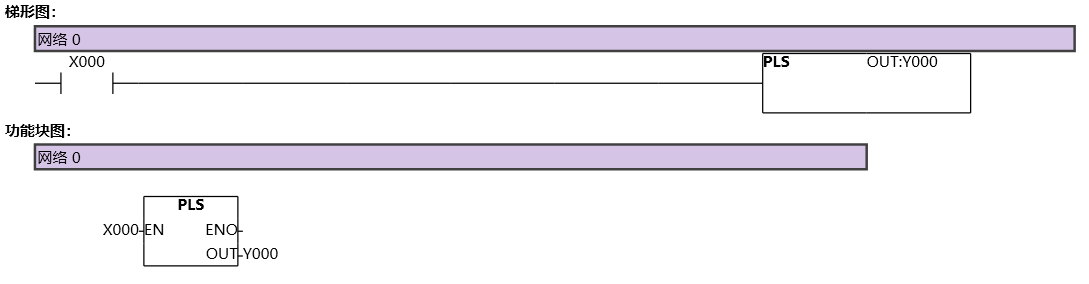

图1 PLS
