1. Convert Double Integer to Floating DTOF
1.1. Instruction Description#
The Double Integer to Floating Point (DTOF) instruction converts a double integer value (IN) to a floating point number and places the result into the register specified by (OUT).
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN | 32-bit integer | D/CV/K/H/FD, bit composite word (X/Y/M/C/T/S), local variable (LD) | input |
| OUT | 32-bit real number | D, local variable (LF) | output |
1.3. Example#
Command table:
NETWORK 000
LD X000
DTOF D0 D2 // Convert the double integer D0D1 to a floating-point number and store it in register D2D3

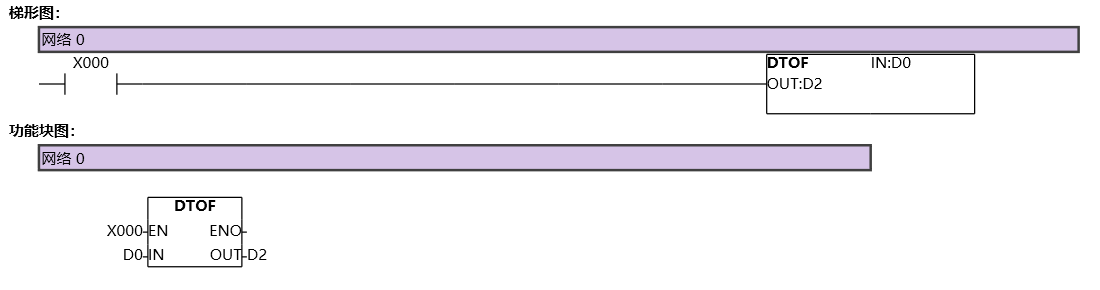

图1 DTOF
