1. Convert integers to double integers WTOD
1.1. Instruction Description#
The integer to double integer (WTOD) instruction converts an integer value (IN) into a double integer value and places the result into the register specified by (OUT).
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN | 16 bit integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | Input |
| OUT | 32-bit integer | D/CV, bit composite word (Y/M/C/T/S), local variable (LD) | output |
1.3. Example#
Command table:
NETWORK 000
LD X000
WTOD D0 D1 // Convert integer D0 to a double integer and store it in register D1D2

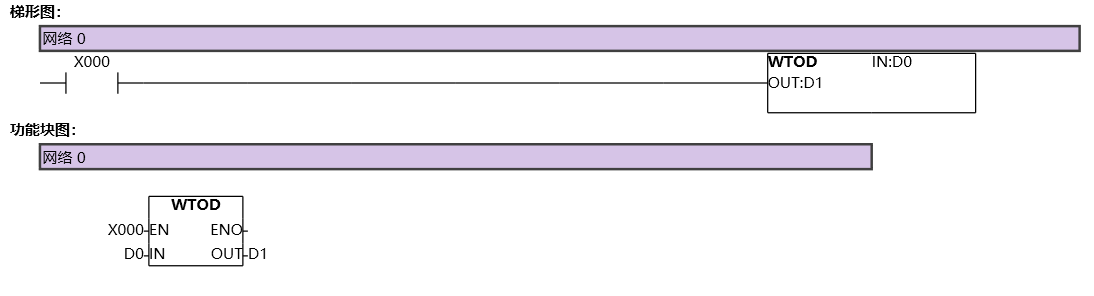

图1 WTOD
