1. Convert integers to floating number WTOF
1.1. Instruction Description#
The integer to floating point (WTOF) instruction converts integer values (IN) to floating point values and places the result into the register specified by (OUT).
1.2. The valid operands of the instruction#
| Input/Output | Data Type | operand | Description |
|---|---|---|---|
| IN | 16 bit integer | D/CV/TV/AI/AO/K/H/V/Z/FD, bit composite word (X/Y/M/C/T/S), local variable (LW) | Input |
| OUT | 32-bit real number | D, local variable (LF) | output |
1.3. Example#
Command table:
NETWORK 000
LD X000
WTOF D0 D1 // Convert integer D0 to a floating-point number and store it in register D1D2

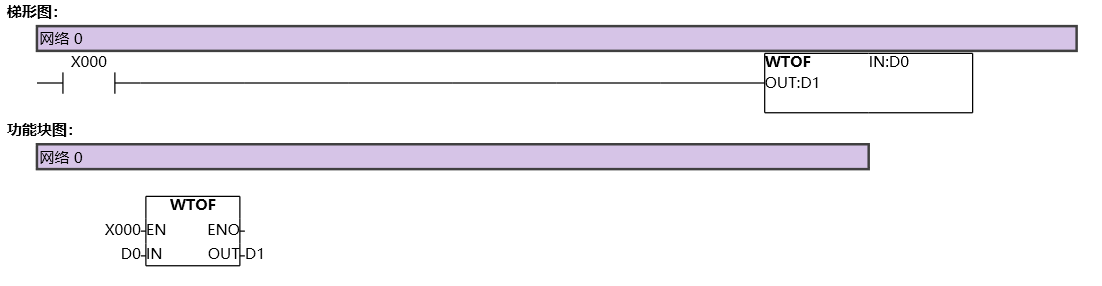

图1 WTOF
