1. Data format
In the monitoring list, different data types are specified, and there will be different ways to represent values.
In the following example, D0=40000，D2=2200000000， In fact, storing the dual characters of D2 will occupy both D2 and D3 software components simultaneously.

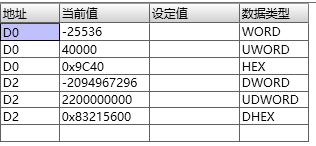

图1 Watchlist
1.1. Decimal numerical representation#
Use numbers from 0 to 9 to represent negative numbers, which will be preceded by a '-' symbol as the negative sign.
BCD code is actually converted into decimal digits for display.
1.2. Hexadecimal numerical representation#
Use numbers from 0 to 9 to represent the range from 0 to 9, and letters from A to F to represent the range from 10 to 15. There will be no negative sign.
